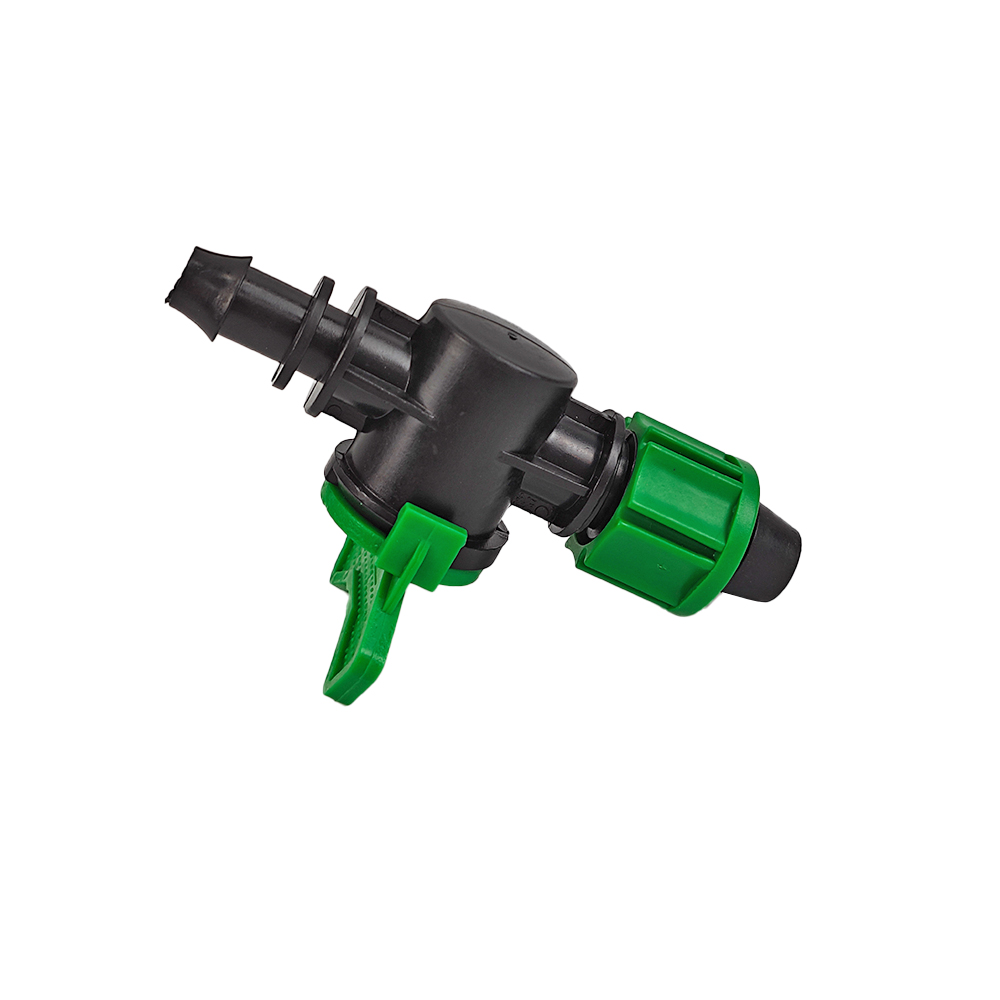

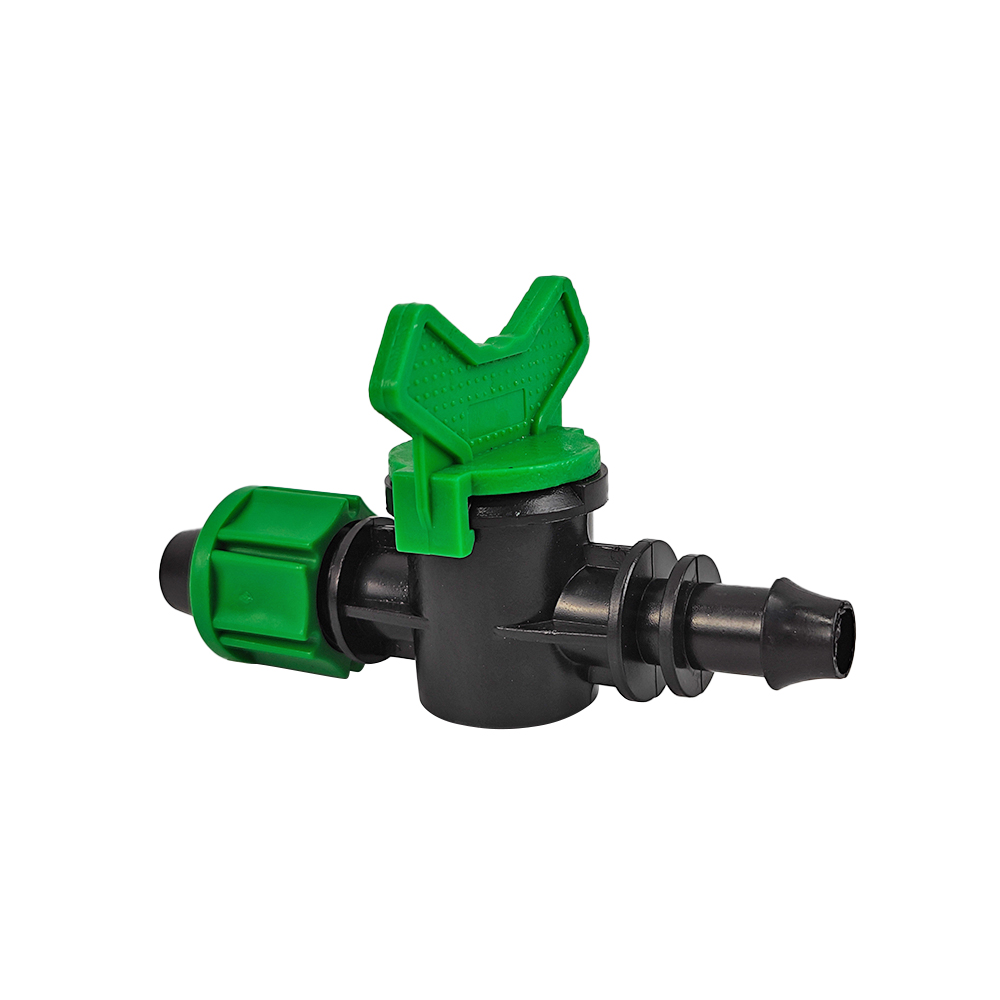

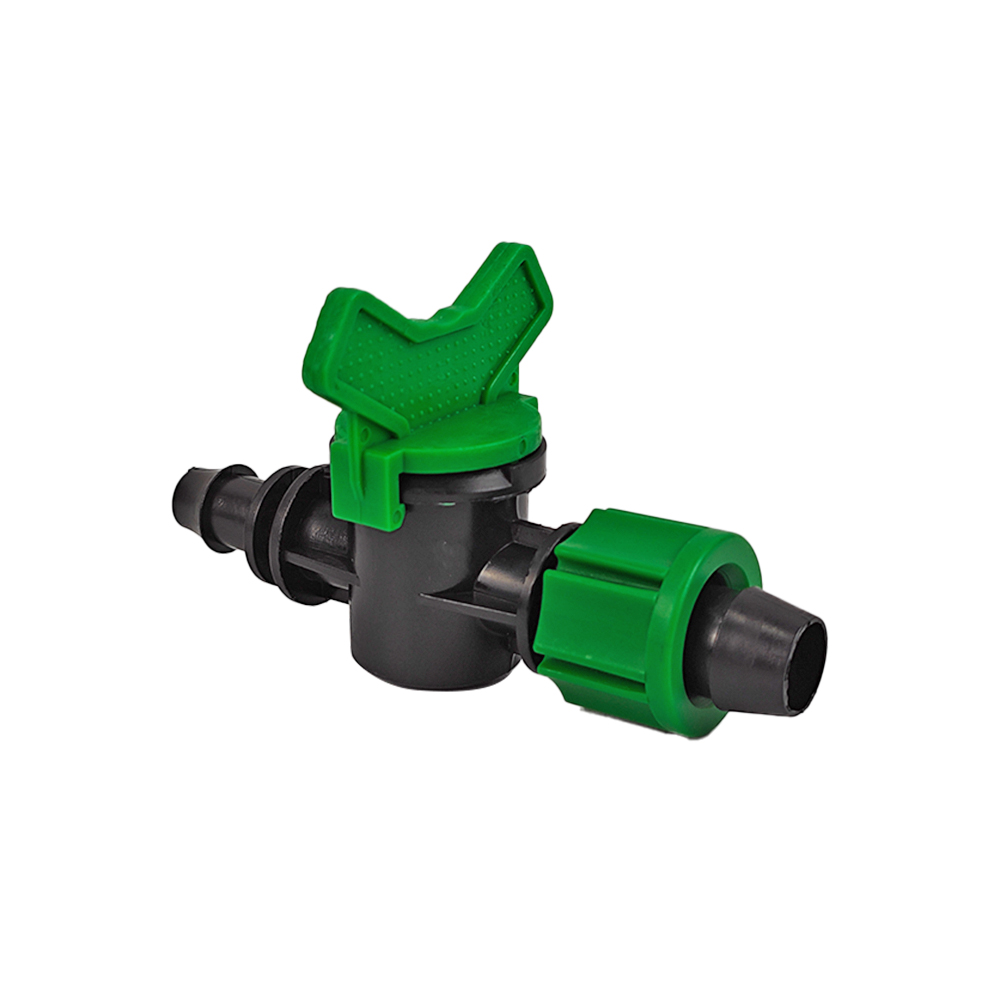

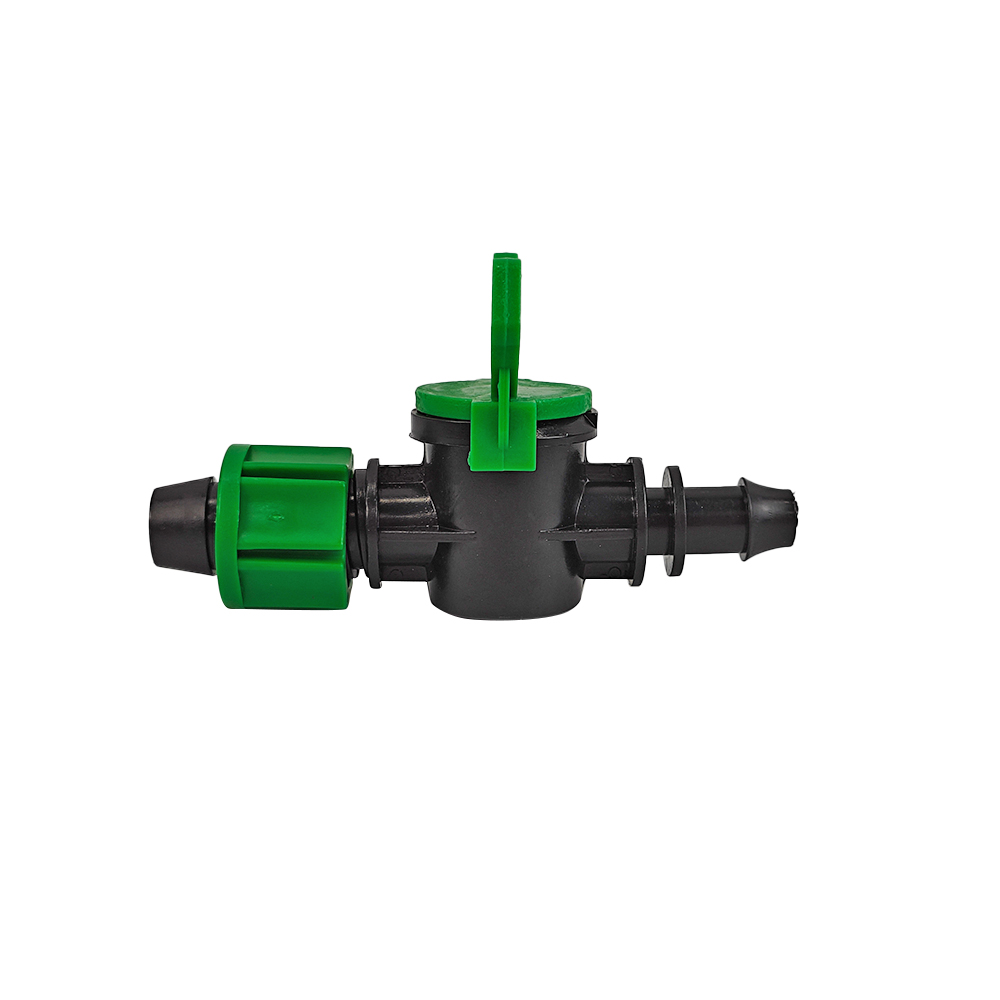

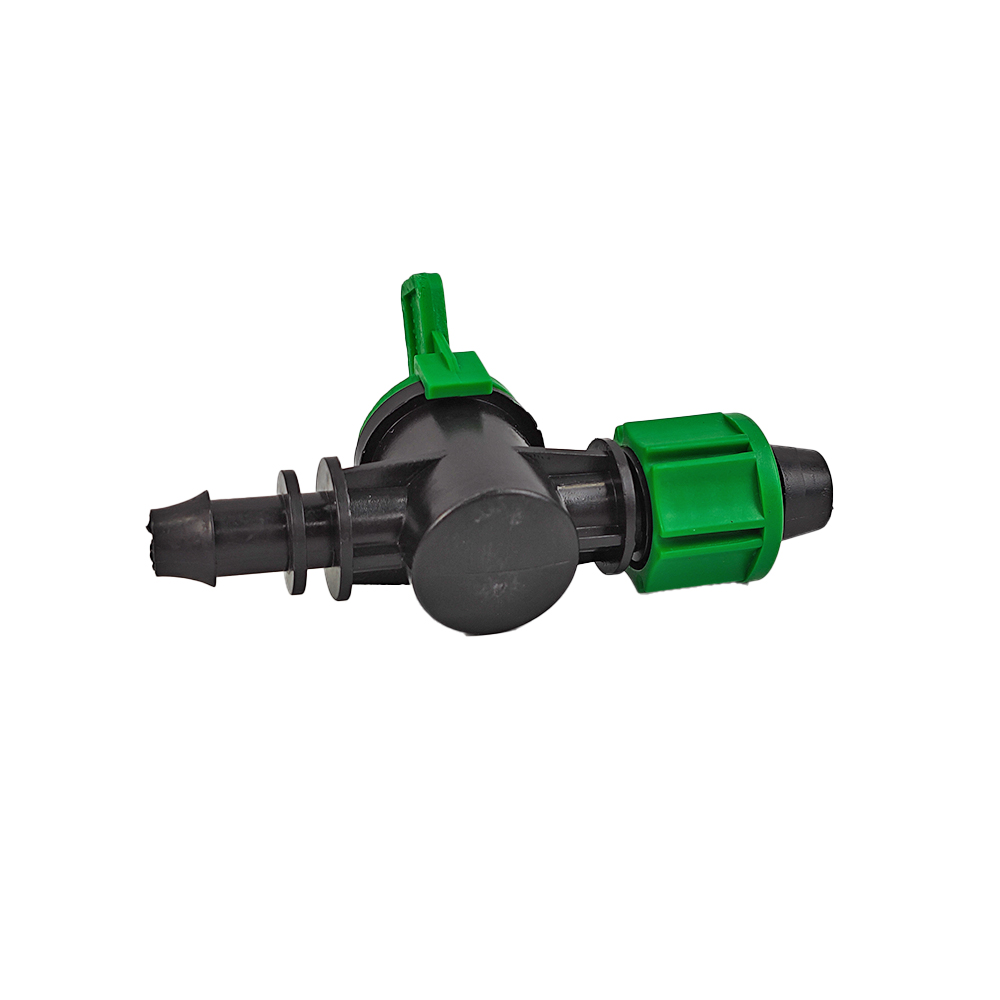

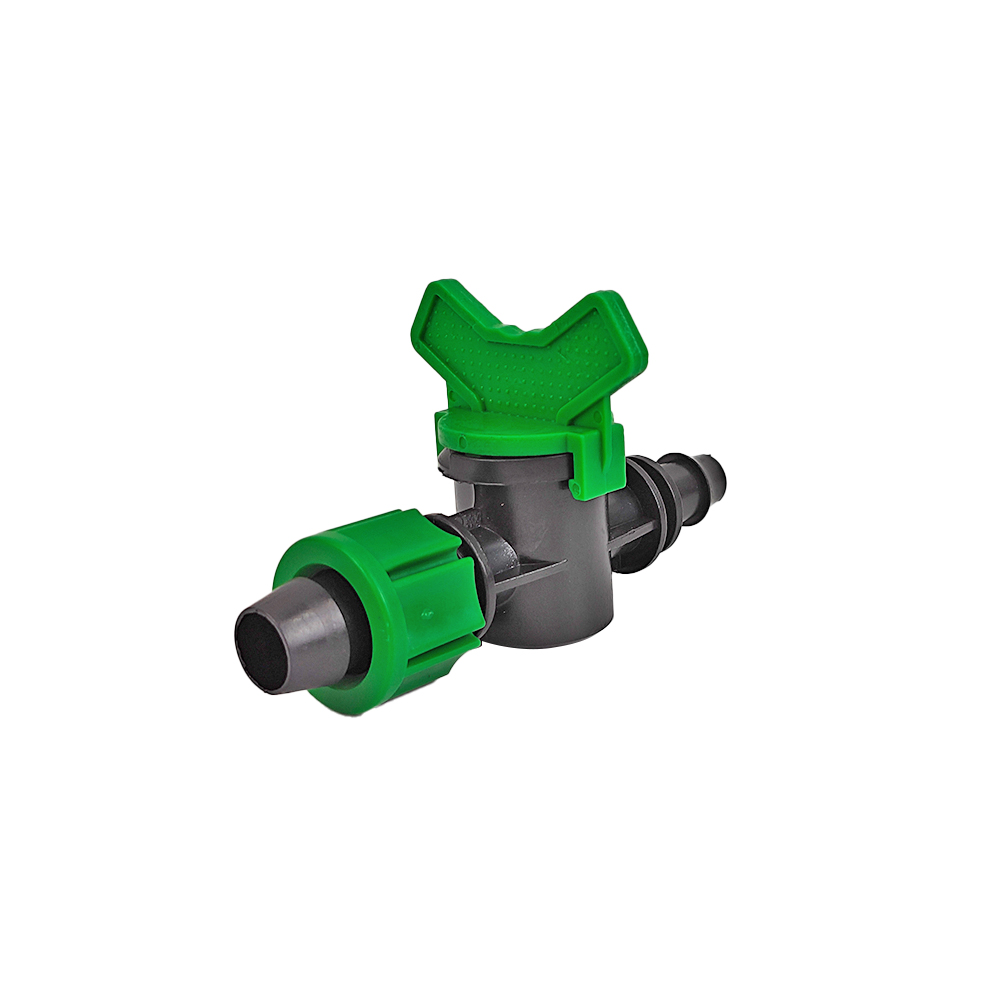

16mm Inline Drip Tape Valve with Lock Nut

HGDN supplies the 16mm inline drip tape valve with lock nut for distributors, importers, irrigation contractors and commercial farm projects. Inline flow-control valve for opening, throttling or shutting off a drip tape branch. The lock-nut and barbed ends are intended for a secured plastic irrigation connection. Final compatibility is confirmed against the buyer’s approved sample and order specification.

16mm Inline Drip Tape Valve Features

• Green manual control handle for quick field adjustment.
• Lock-nut and barb connection geometry for a secure drip-tape assembly.
• Compact injection-molded plastic body suited to repeated installation and removal.
• Color, packing, logo and connection details can be prepared for distributor orders.

Common Supply Specification

Product type	16mm drip tape inline control valve
Nominal connection	16mm drip tape / PE irrigation connection
Connection style	Lock-nut and barbed connection; confirm inlet/outlet combination against approved sample
Control	Manual top handle; open, regulate or close
Material	Injection-molded plastic; common commercial options include PP, PE or POM components
Color	Black body with green control parts shown in the local image; custom colors available
Working pressure reference	Low-pressure drip irrigation service; use the agreed pressure test value for the order
Temperature reference	Outdoor agricultural use; final resin and temperature range confirmed by formulation
Sealing	Mechanical lock-nut fit with sealing interface; leak test at agreed pressure
Packaging	PP bag, carton or export packing; quantity per carton confirmed by order
Customization	Color, logo, label, packing and mold/sample matching available subject to quotation

Applications

Vegetable beds, strawberry rows, greenhouse lanes, nursery irrigation and commercial field drip systems where each lateral needs independent flow control.

Manufacturing, Quality Control and Packaging

Each order should be produced against an approved specification covering nominal size, connection geometry, material option, color, sealing parts and packing quantity. Production checks should include molding finish, dimensions, lock or plug retention, handle movement where applicable, sealing fit and leakage under the agreed pressure. HGDN can provide bulk bags, cartons, labels and export packing according to the order.

B2B Custom Supply

For matching connectors, end closures and related irrigation fittings, see the drip irrigation accessories range. HGDN supports agricultural distributors, importers, irrigation contractors and commercial farm projects. Buyers can specify quantity, color, logo, packaging, label, sample matching, compatible tape or pipe, destination market and required delivery schedule. The final material grade, pressure test value and carton configuration are confirmed before production.

Frequently Asked Questions

What is the recommended pressure for drip tape?

Use the operating pressure specified for the connected drip tape and the project design. This inline valve controls a branch; it does not replace a pressure regulator. Confirm the tape rating and test the assembled branch before bulk deployment.

What is this 16mm inline drip tape valve used for?

It opens, regulates or shuts off an individual 16mm drip tape lateral, allowing separate control of crop rows or irrigation zones.

Does it connect directly to 16mm drip tape?

The photographed fitting uses a 16mm lock-nut and barbed connection arrangement. Tape wall thickness and mating geometry should be checked with an approved sample before a bulk order.

How is leakage checked before shipment?

Inspect the molded body, lock nut, barb and sealing interface, then perform a water test at the pressure agreed for the buyer’s drip tape system.

Can HGDN customize the color and packaging?

Yes. Distributors and importers can request color, logo, labels, bag quantities and export cartons subject to the approved order specification.
