16mm Barbed Drip Tape Valve with Lock Nut – Factory Direct Supply
Manual control fitting combining a lock-nut tape connection and a barbed irrigation outlet for farm drip lines, greenhouse rows, orchard branches, nursery irrigation and distributor spare-parts programs. HGDN supplies this fitting for distributors, importers, irrigation contractors and commercial farm projects.

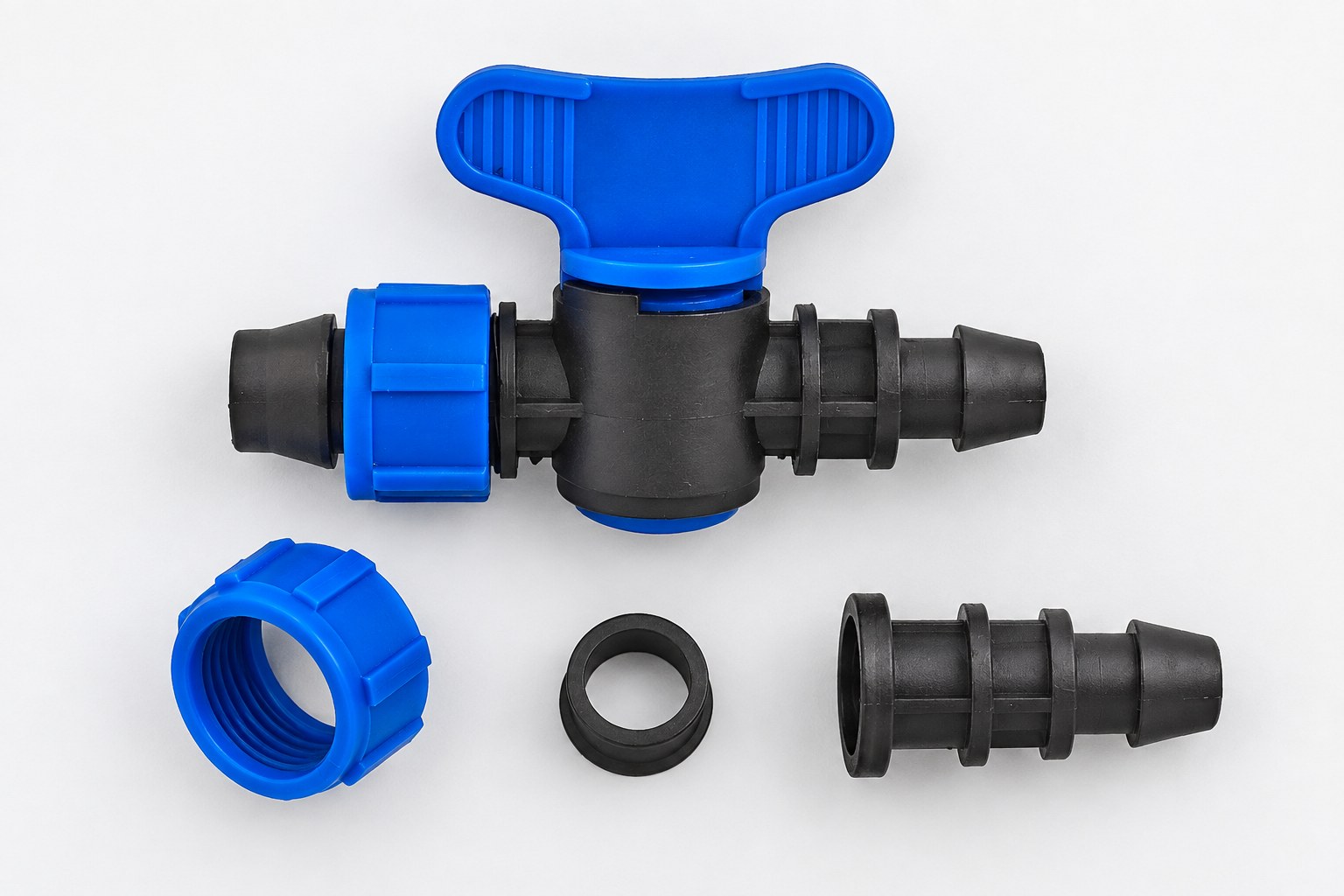

HGDN supplies the 16mm barbed drip tape valve with one lock-nut connection and one barbed outlet for distributors, importers, irrigation contractors and commercial farm projects. Manual control fitting combining a lock-nut tape connection and a barbed irrigation outlet. Final compatibility is confirmed against the buyer’s approved sample and order specification.
Key Features
Blue butterfly handle for visible manual control.
Mixed lock-nut and barb layout for connecting different irrigation components.
Compact plastic body for row-level flow management.
Distinct page positioning from dual-lock and green-handle variants.
Common Supply Specification
Product type
16mm drip tape control valve with lock nut and barb
Nominal size
16mm
Material
Plastic; PP/PE/POM are common commercial component options
Control
Manual blue butterfly handle
Connection
One lock-nut side and one barbed side shown
Color
Blue and black as shown in local image
Sealing
Mechanical lock-nut compression plus barb retention
Working pressure reference
Low-pressure drip irrigation service; test against agreed order pressure
Packaging
PP bag, carton or customized export packing
Customization
Color, label, logo, package and sample matching
Inspection
Check barb dimensions, lock-nut engagement, handle movement and leakage
Each order should be produced against an approved specification covering nominal size, connection geometry, material option, color, sealing parts and packing quantity. Production checks should include molding finish, dimensions, lock or plug retention, handle movement where applicable, sealing fit and leakage under the agreed pressure. HGDN can provide bulk bags, cartons, labels and export packing according to the order.
B2B Custom Supply
HGDN supports agricultural distributors, importers, irrigation contractors and commercial farm projects. Buyers can specify quantity, color, logo, packaging, label, sample matching, compatible tape or pipe, destination market and required delivery schedule. The final material grade, pressure test value and carton configuration are confirmed before production.Related irrigation fittings: compare the 16mm drip tape offtake valve and inline drip tape valve for other connection layouts.
Frequently Asked Questions
How do barbed drip irrigation fittings make a connection?
The barb grips the inside of the mating tube or fitting, while the lock nut secures the drip tape side. Both dimensions must match the intended components.
What is the purpose of the lock-nut and barb combination?
It allows one side to retain thin-wall drip tape and the other to connect to a compatible barbed irrigation component.
Where is this valve normally installed?
It can be used at a lateral start or transition point where individual flow control and a barbed connection are required.
How can leakage be reduced?
Use matching diameters, insert components fully, tighten the lock nut correctly and water-test the assembly at the specified system pressure.
Can HGDN customize the connection and packing?
Sample-based connection matching, color, labels, bag quantities and export cartons can be discussed for bulk orders.
