16mm Drip Tape Take-Off Connector with Valve

HGDN supplies the 16mm drip tape take-off connector with valve for distributors, importers, irrigation contractors and commercial farm projects. Take-off fitting for creating a branch from a main PE/PVC pipe or header to a drip tape or small irrigation lateral. Final compatibility is confirmed against the buyer’s approved sample and order specification.

16mm Drip Tape Take-Off Connector Features

• Vertical take-off outlet for a clean branch connection.

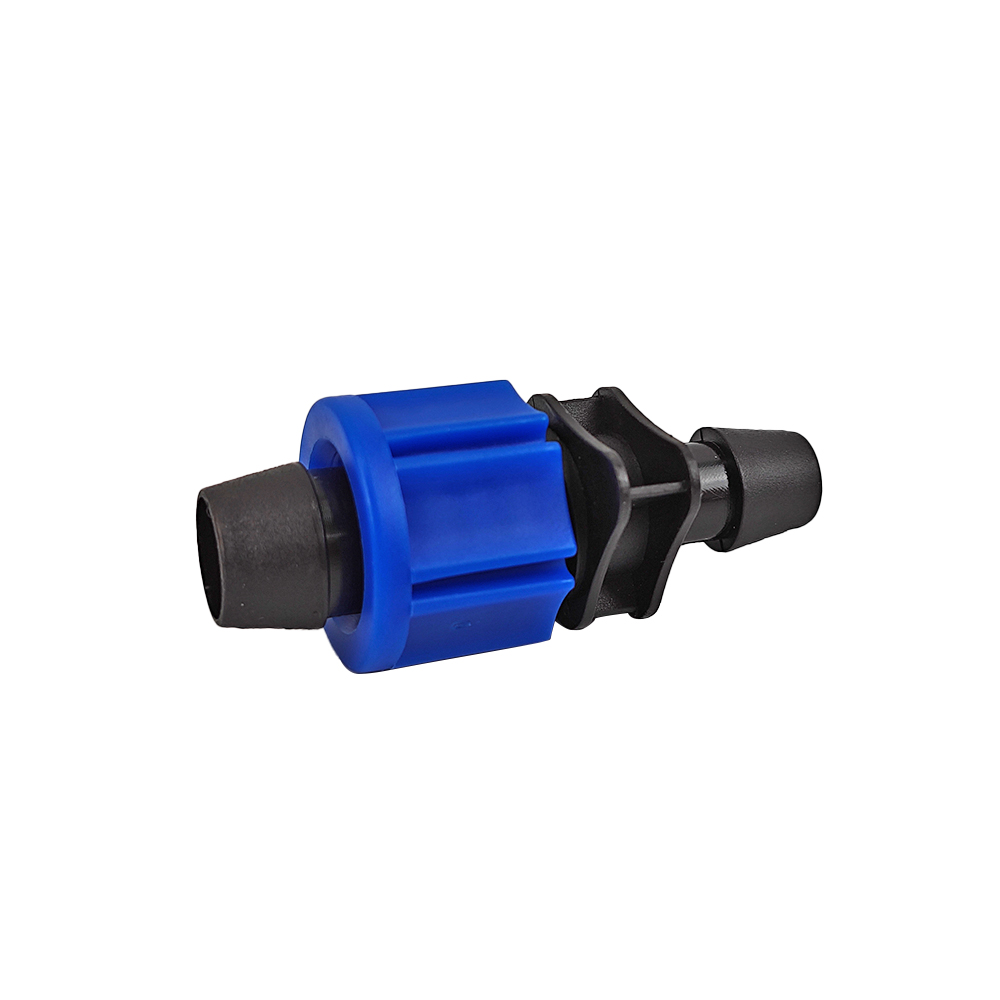

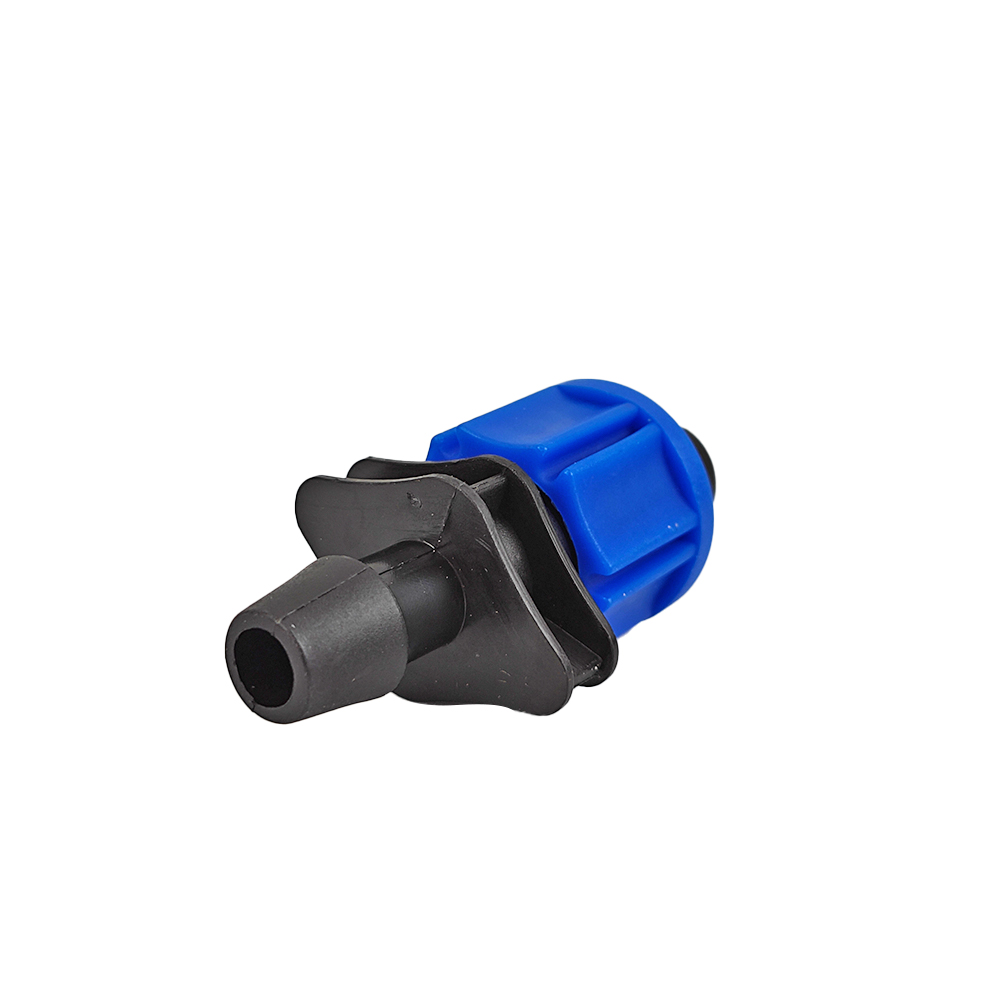

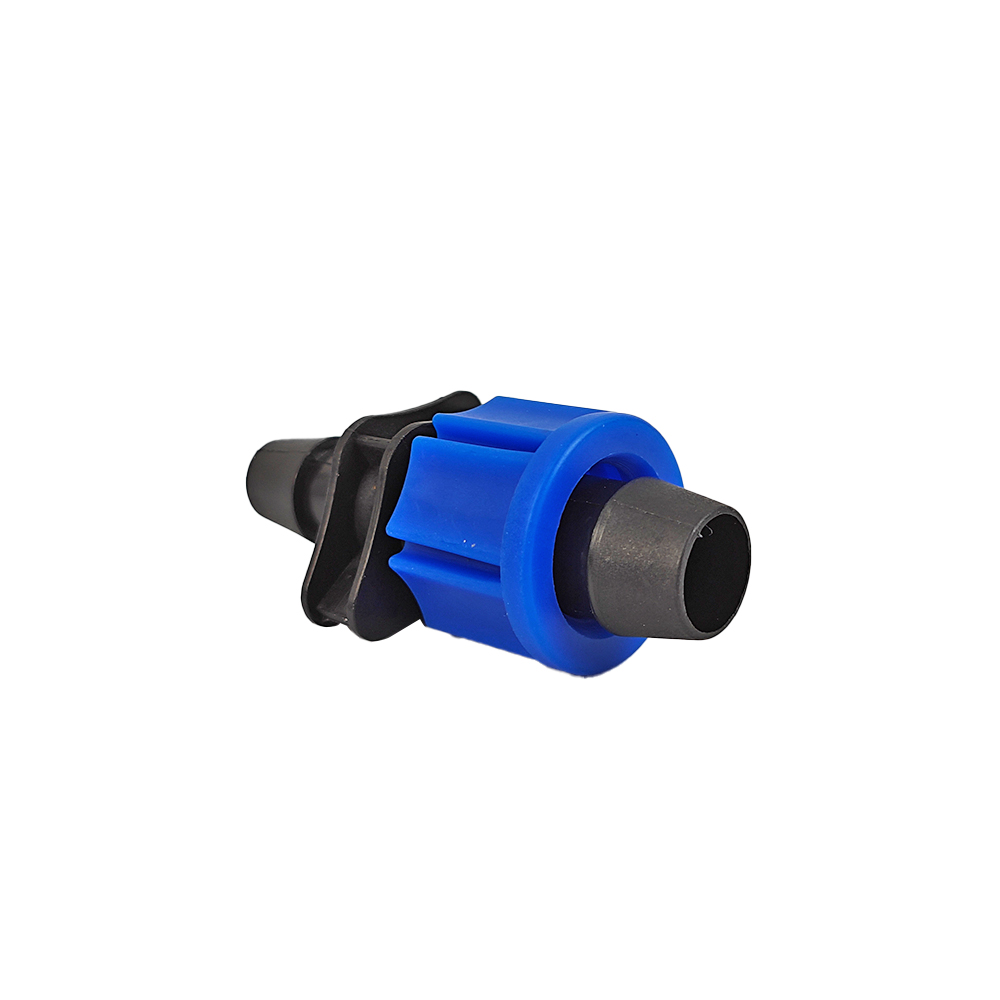

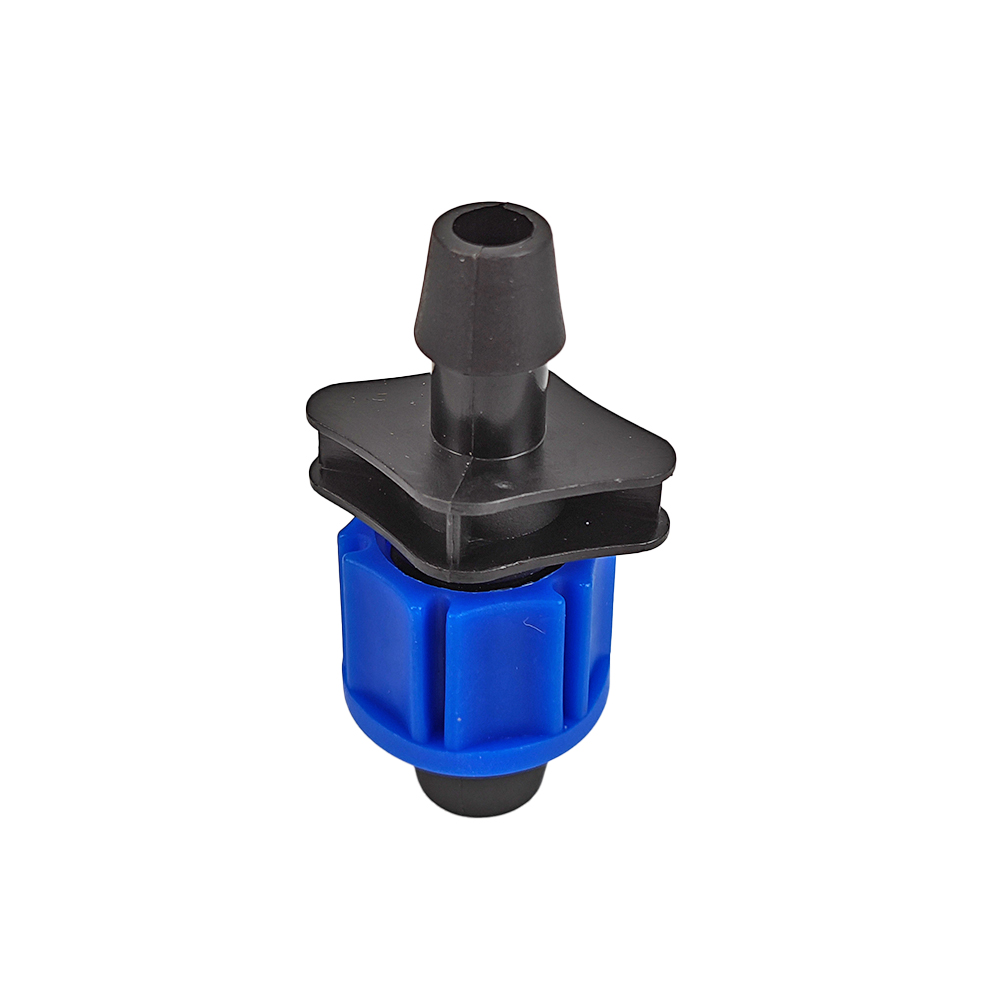

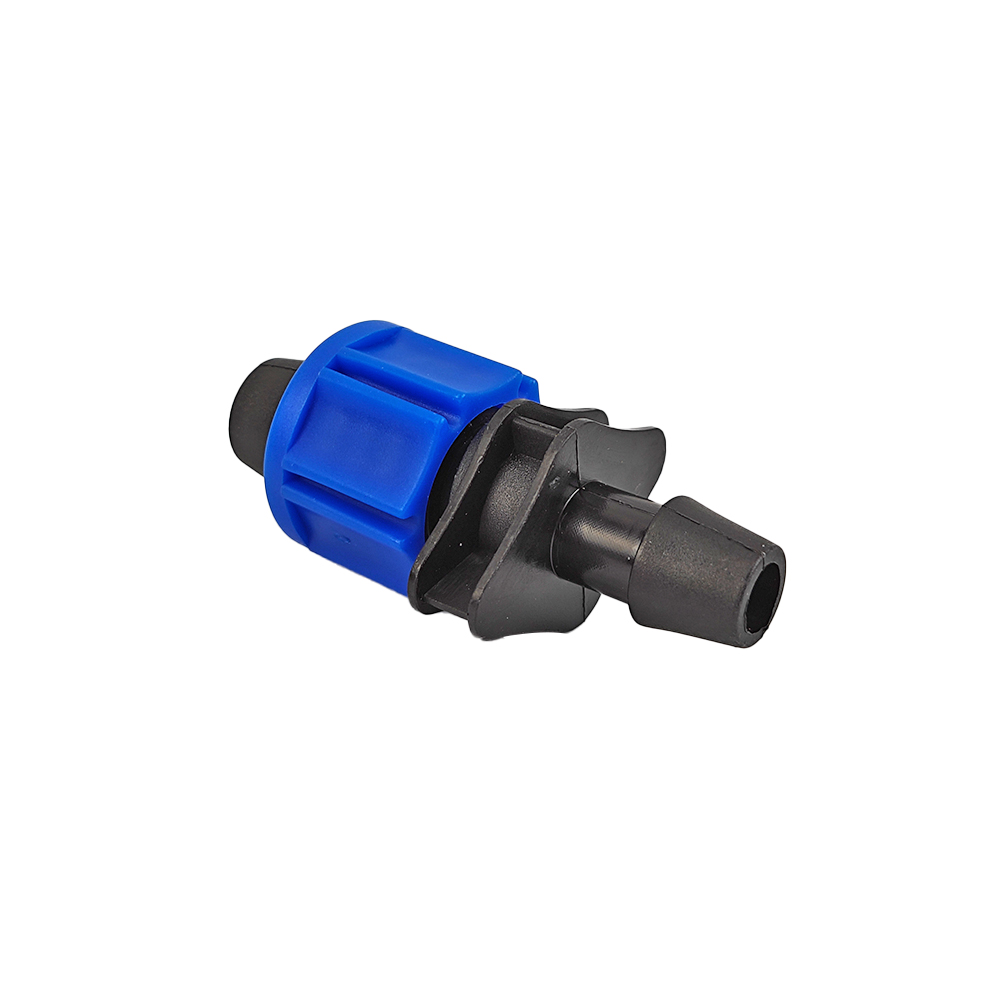

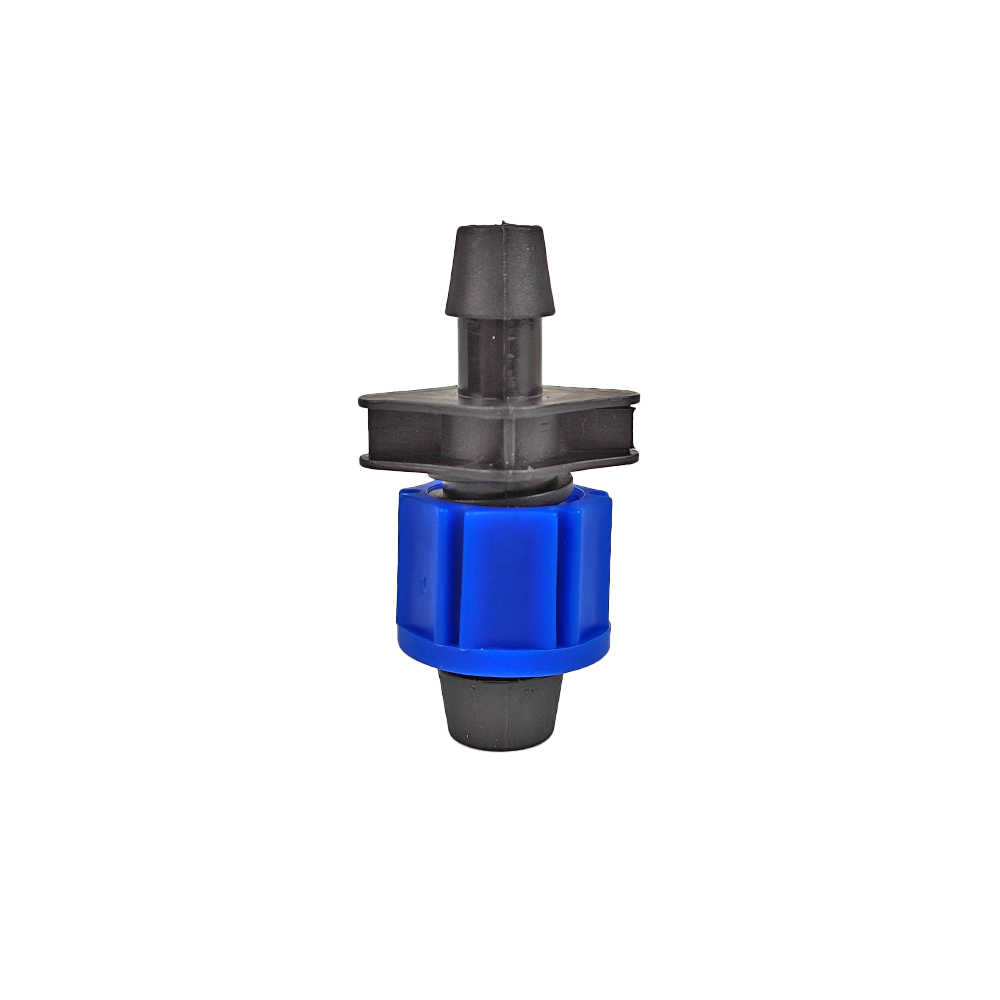

• Blue lock nut and black plastic fitting body shown in the local image.
• 16mm nominal connection size for matching irrigation layouts.
• Suitable for project kits, spare-part supply and complete drip irrigation systems.

Common Supply Specification

Product type	16mm drip irrigation take-off connector with valve
Diameter	16mm
Material	Plastic body and locking components; final resin grade follows the approved specification
Color	Blue and black as shown; custom colors available
Connection arrangement	Take-off outlet, lock-nut section and barbed irrigation connection
Application	Farm, greenhouse, agricultural and water-saving irrigation systems
Sealing	Grommet/washer and lock-nut interface where required by the pipe wall
Package reference	Bulk bags, cartons and labeled export packing can be confirmed for each order
Quality checks	Diameter, barb geometry, lock-nut fit, sealing and leakage at agreed pressure
Customization	Logo, color, package, label and sample-based matching available
Commercial supply	MOQ and quotation depend on order configuration

Applications

Farm headers, greenhouse manifolds, orchard branch lines, vegetable beds and irrigation projects requiring individual 16mm tape take-offs.

Manufacturing, Quality Control and Packaging

Each order should be produced against an approved specification covering nominal size, connection geometry, material option, color, sealing parts and packing quantity. Production checks should include molding finish, dimensions, lock or plug retention, handle movement where applicable, sealing fit and leakage under the agreed pressure. HGDN can provide bulk bags, cartons, labels and export packing according to the order.

B2B Custom Supply

HGDN supports agricultural distributors, importers, irrigation contractors and commercial farm projects. Buyers can specify quantity, color, logo, packaging, label, sample matching, compatible tape or pipe, destination market and required delivery schedule. The final material grade, pressure test value and carton configuration are confirmed before production.Explore the drip tape accessories range or compare this branch fitting with the 16mm drip tape offtake valve for a different connection layout.

Frequently Asked Questions

How do you install a drip tape take-off connector?

Create the specified hole in the main pipe, insert the matching grommet where required, seat the connector, attach the 16mm tape and tighten the lock nut by hand. Test for leakage before commissioning.

What is a drip tape take-off connector?

It creates a branch from a PE or PVC header to a drip tape lateral and may include a valve for individual row control.

Does this fitting require a hole in the main pipe?

Yes, for a drilled-header installation. The hole diameter and grommet must match the connector inlet rather than being selected from the 16mm outlet size alone.

How can a buyer reduce leakage at the connection?

Use matching hole, grommet and connector dimensions, seat every part squarely, avoid over-tightening and pressure-test the assembled branch.

Can HGDN pack connectors as a project kit?

Yes. Connectors, matching grommets and related fittings can be grouped and labeled by project or distributor packing plan.
