16mm Drip Tape Offtake Valve with Lock Nut – Factory Direct Supply

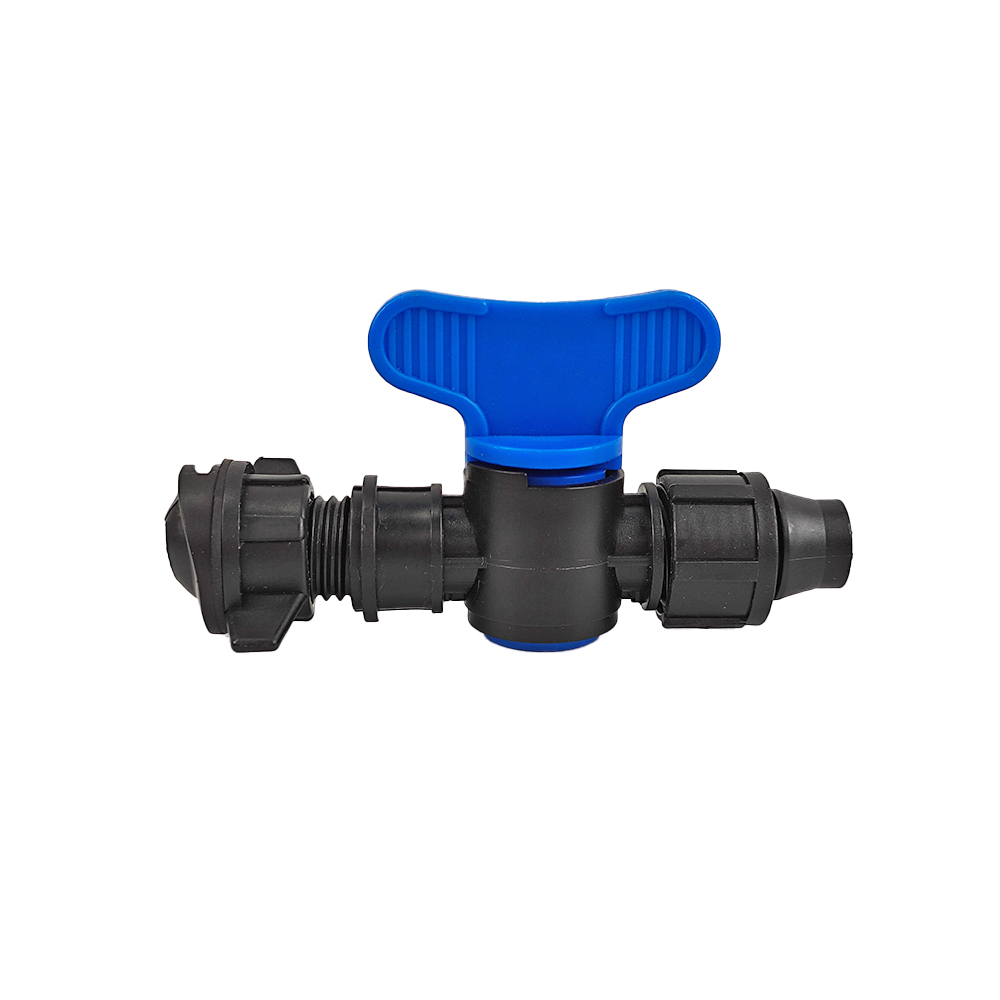

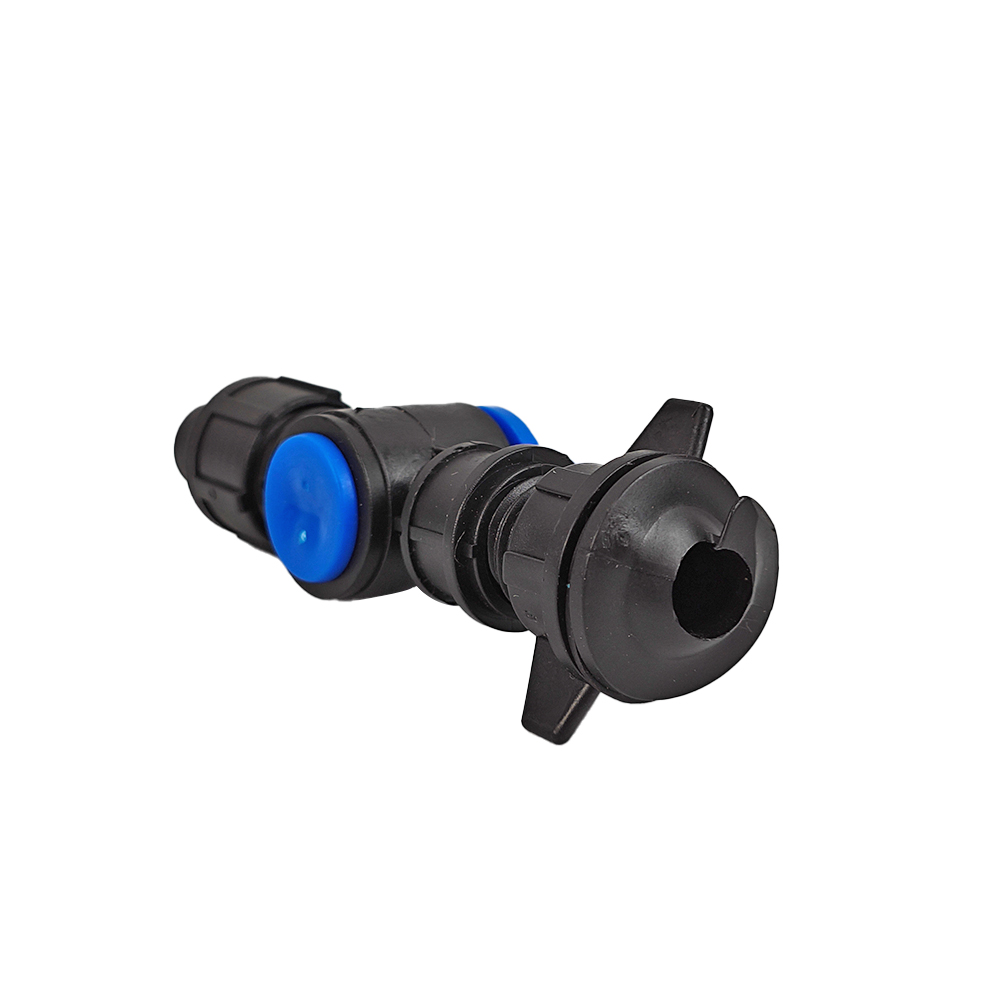

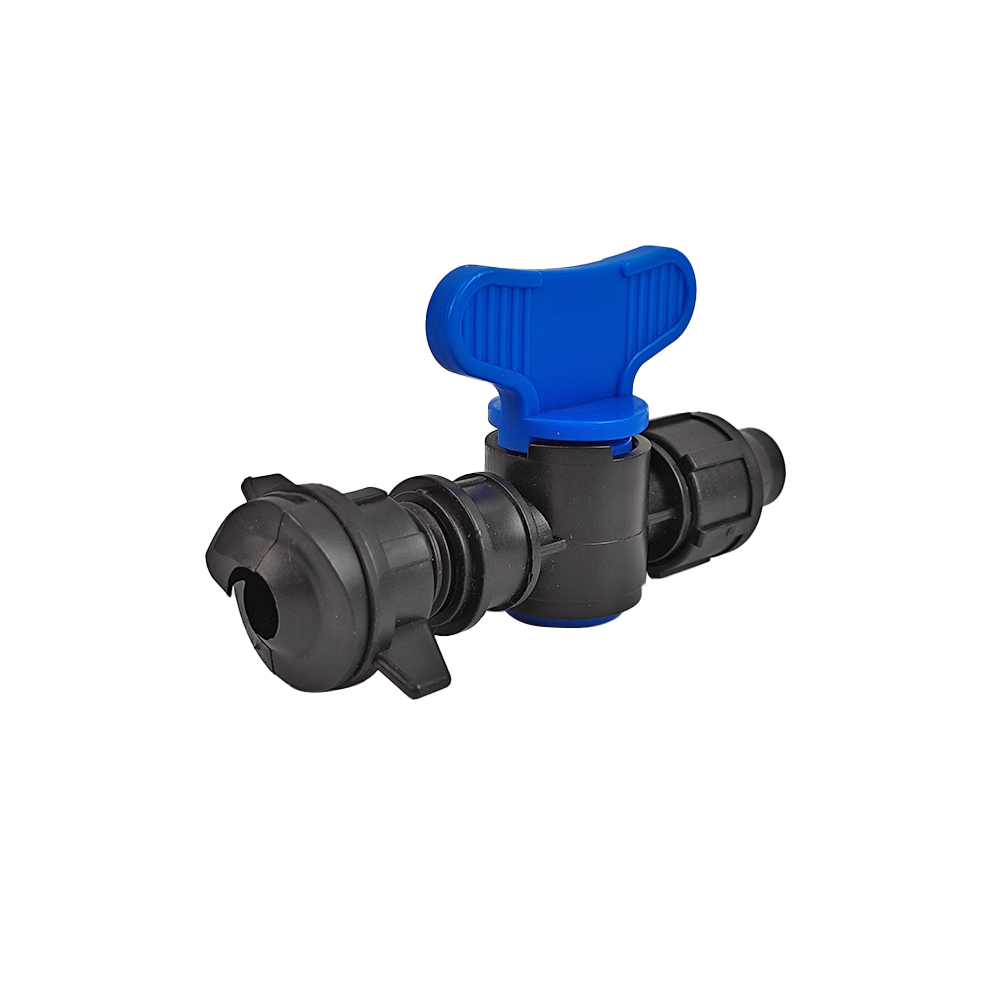

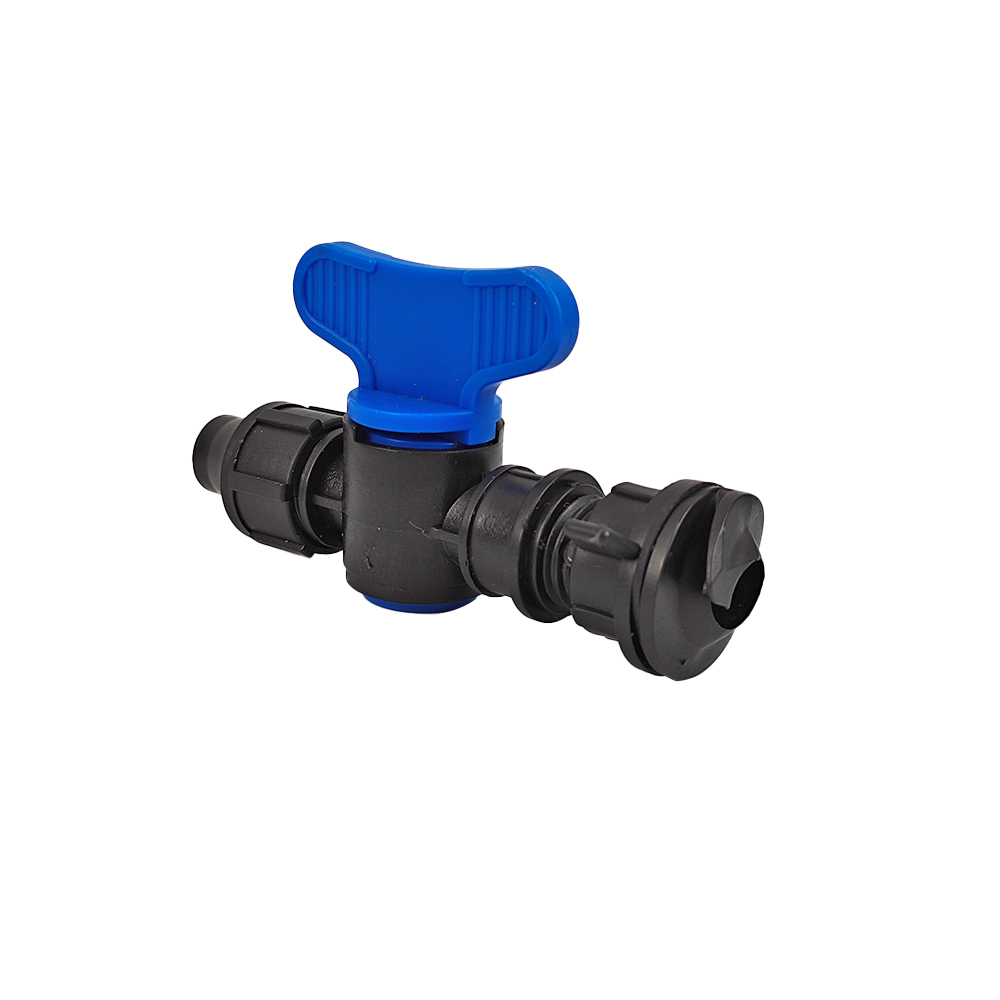

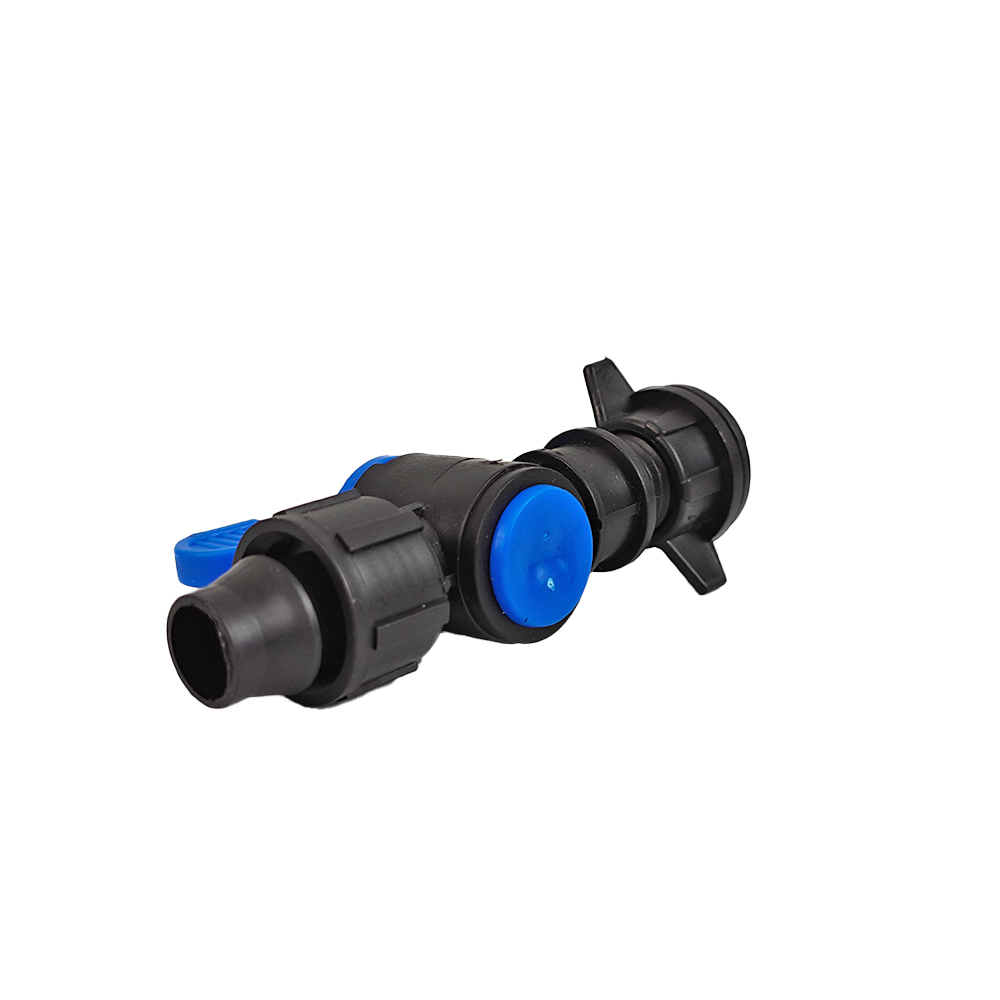

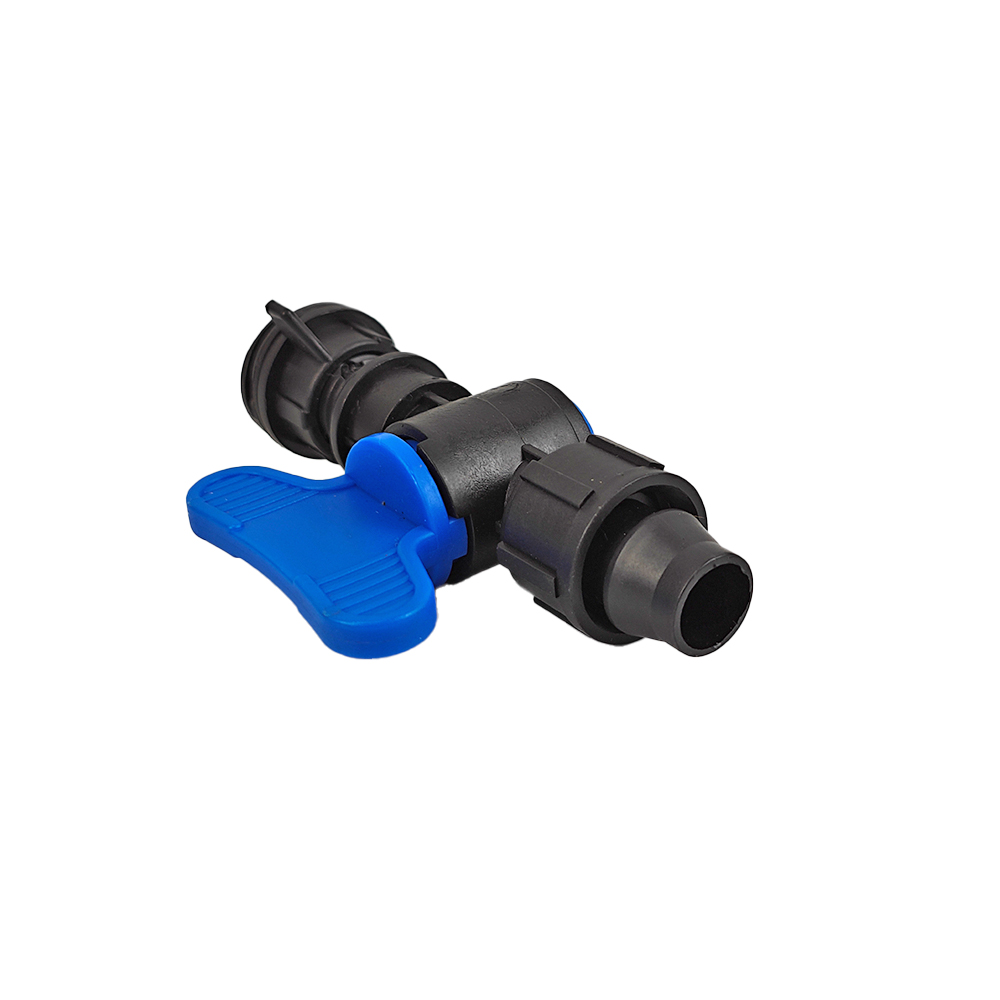

A manual offtake/mini valve used to connect and control a drip tape branch from a PE or irrigation line. Designed for commercial vegetable fields, greenhouse beds, orchard laterals, nursery irrigation and farm projects using 16mm drip tape or pe lines. HGDN supplies this fitting for distributors, importers, irrigation contractors and commercial farm projects.
Supply Options:
Product type: 16mm drip tape offtake / mini control valve.
Nominal size: 16mm.
Material: Plastic construction; final resin grade is confirmed against the approved sample and order specification.
Color: Blue handle with black body as shown in the local image.
Application: Farm, agricultural and drip irrigation systems.
Connection: Lock-nut and barb-style irrigation connection shown; final connection side confirmed by sample.
Customization: Color, logo, label, packaging and sample-based matching can be discussed for bulk orders.
HGDN supplies the 16mm drip tape offtake valve with lock nut for distributors, importers, irrigation contractors and commercial farm projects. A manual offtake/mini valve used to connect and control a drip tape branch from a PE or irrigation line. Final compatibility is confirmed against the buyer’s approved sample and order specification.
Key Features
Manual butterfly handle for on/off branch control in field irrigation layouts.
16mm nominal connection for a matching drip tape or lateral line.
Barbed connection with a lock nut to help secure the mating irrigation component.
Compact plastic fitting suited to repeat installation and bulk agricultural supply.
Common Supply Specification
Product type
16mm drip tape offtake / mini control valve
Nominal size
16mm drip tape or lateral connection
Material
Plastic construction; final resin grade confirmed against the approved sample and order specification
Color
Blue handle with black body as shown in the local product image; custom colors available
Application
Commercial farm, greenhouse, orchard and nursery drip irrigation
Connection
Lock-nut and barb-style connection shown; mating hole, grommet and connection geometry confirmed before production
Control
Manual butterfly handle for branch opening and closing
Packaging
Bulk bag, carton, label and export packing options available; quantity and carton configuration confirmed per order
Working pressure reference
For low-pressure agricultural drip irrigation; pressure test value agreed before production
Customization
Color, logo, packaging, labeling and sample-based matching available for bulk orders
Commercial supply
MOQ, price and delivery schedule quoted according to quantity, customization and destination
Applications
Commercial vegetable fields, greenhouse beds, orchard laterals, nursery irrigation and farm projects using 16mm drip tape or PE lines.
Manufacturing, Quality Control and Packaging
HGDN can organize production against an approved specification covering nominal size, connection geometry, material option, color, sealing parts and packing quantity. Quality checks can include molding finish, dimensions, barb and lock-nut fit, handle movement, sealing performance and leakage under the agreed pressure. Bulk bags, cartons, labels and export packing can be prepared for the buyer’s distribution or project requirements.
B2B Custom Supply
As a factory supplier, HGDN supports agricultural distributors, importers, irrigation contractors and commercial farm projects. Buyers can submit the target quantity, connection sample, compatible tape or pipe, color, logo, packaging, destination market and required delivery schedule. Before production, HGDN confirms the final material grade, connection geometry, sealing parts, pressure test value and carton configuration.
Frequently Asked Questions
How is a 16mm drip tape offtake valve installed?
Prepare the correct hole or outlet in the main line, seat the sealing interface fully, connect the offtake side and tighten the lock nut by hand. Test the branch for leakage before field use.
What does the 16mm size refer to?
It refers to the nominal drip tape or lateral connection. The main-line hole, barb and grommet dimensions must match the selected installation.
What is the difference between the lock nut and barb sections?
The barb grips the mating irrigation component, while the lock nut compresses and secures the tape connection.
Does this offtake valve require a rubber grommet?
A grommet is normally used when the fitting passes through a drilled main pipe wall. The exact grommet and hole size depend on the inlet geometry.
Can it be supplied for distributor orders?
Yes. HGDN can quote bulk quantities, custom colors, private labels and export cartons after the connection sample and packing requirements are approved.
How can buyers confirm the correct grommet and main-line hole?
Provide the main-line material, wall thickness and connection sample or drawing. HGDN can confirm the matching grommet, hole size and offtake geometry before production.
How is this offtake valve different from an inline drip tape valve?
An offtake valve branches from a main line or header into a drip tape lateral. An inline valve is installed along the same lateral, so the connection layout and installation requirement are different.
