16mm Drip Tape End Cap with Pull Ring

HGDN supplies the 16mm drip tape end cap with pull ring for distributors, importers, irrigation contractors and commercial farm projects. End closure for stopping a drip tape lateral. The ring provides a grip for removal during flushing, maintenance or seasonal storage. Final compatibility is confirmed against the buyer’s approved sample and order specification.

Key Features

• Pull ring improves removal without tools.
• Locking nut helps retain the tape or lateral end.
• Compact end closure for repeated field maintenance.
• Blue and black two-color appearance shown in the local product image.

Common Supply Specification

Product type	16mm drip tape end cap / flush closure
Nominal size	16mm lateral or drip tape connection
Material	Injection-molded plastic; common commercial options include PP, PE or POM parts
Closure style	Locking cap with pull ring

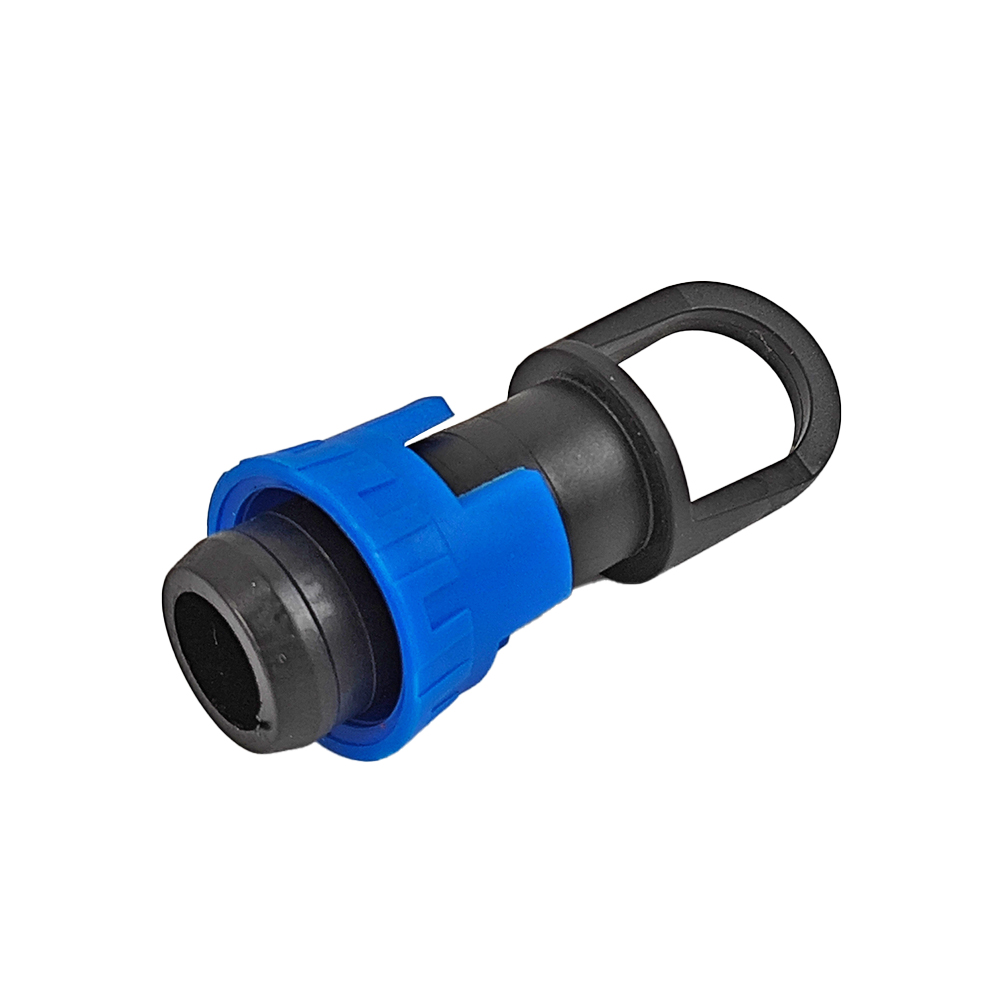

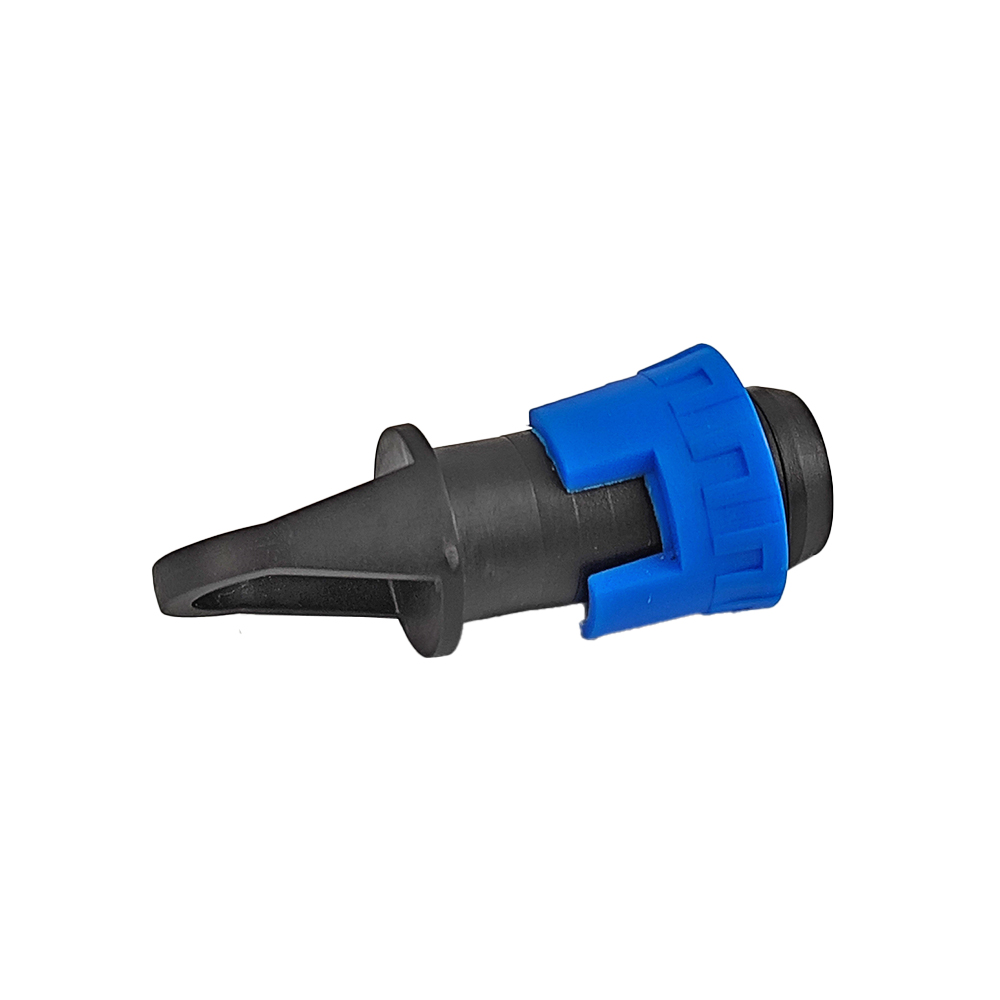

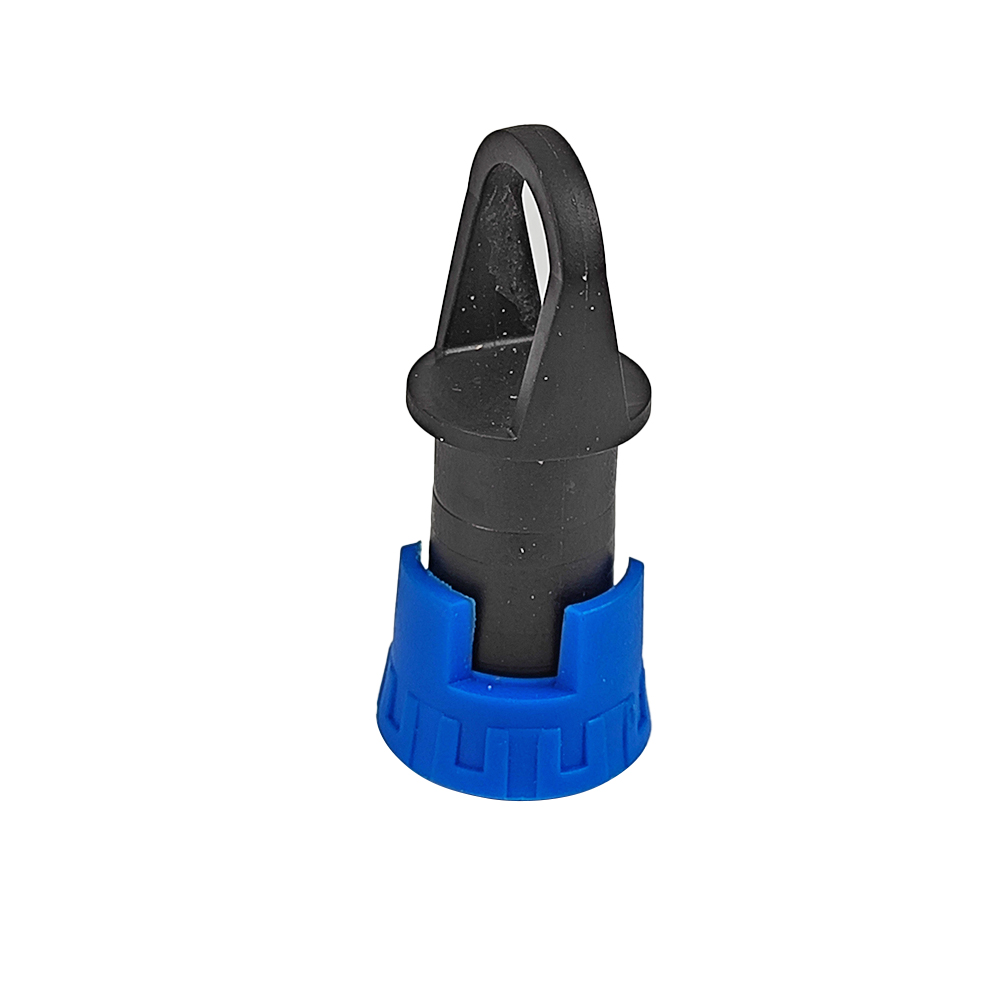

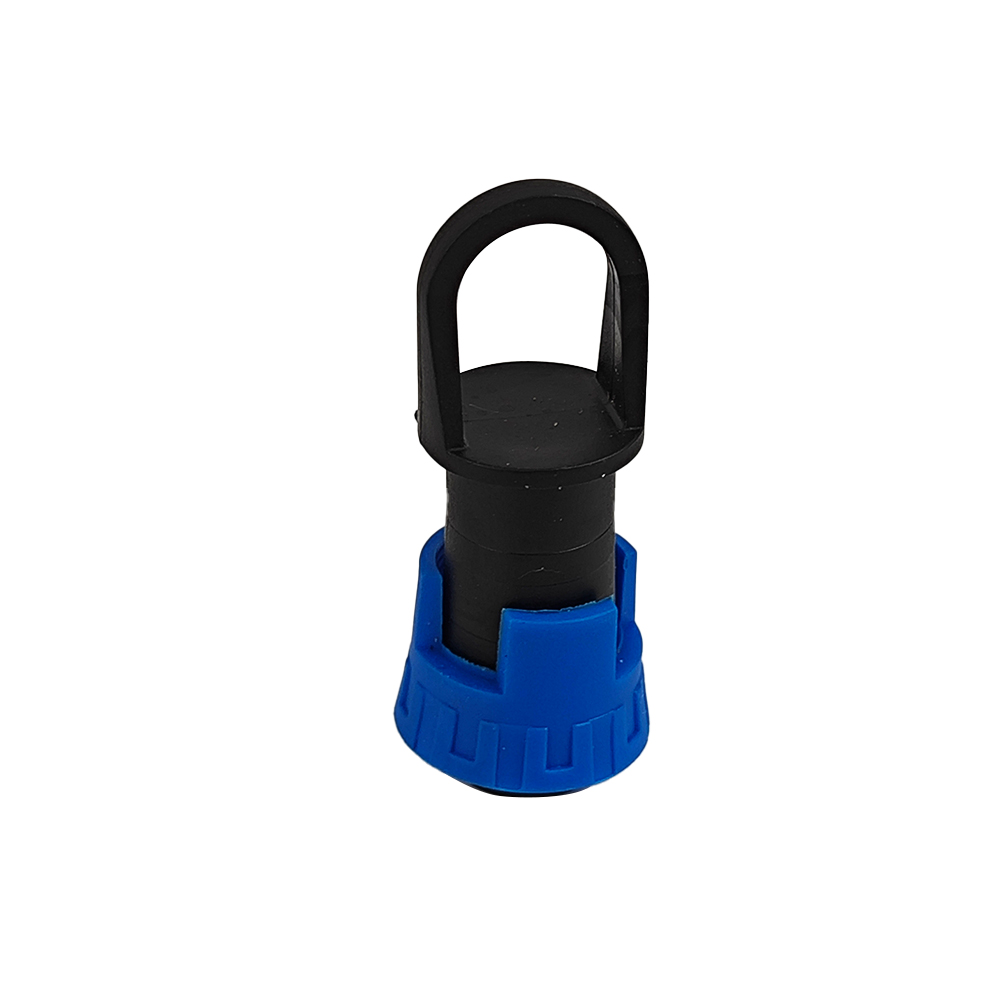

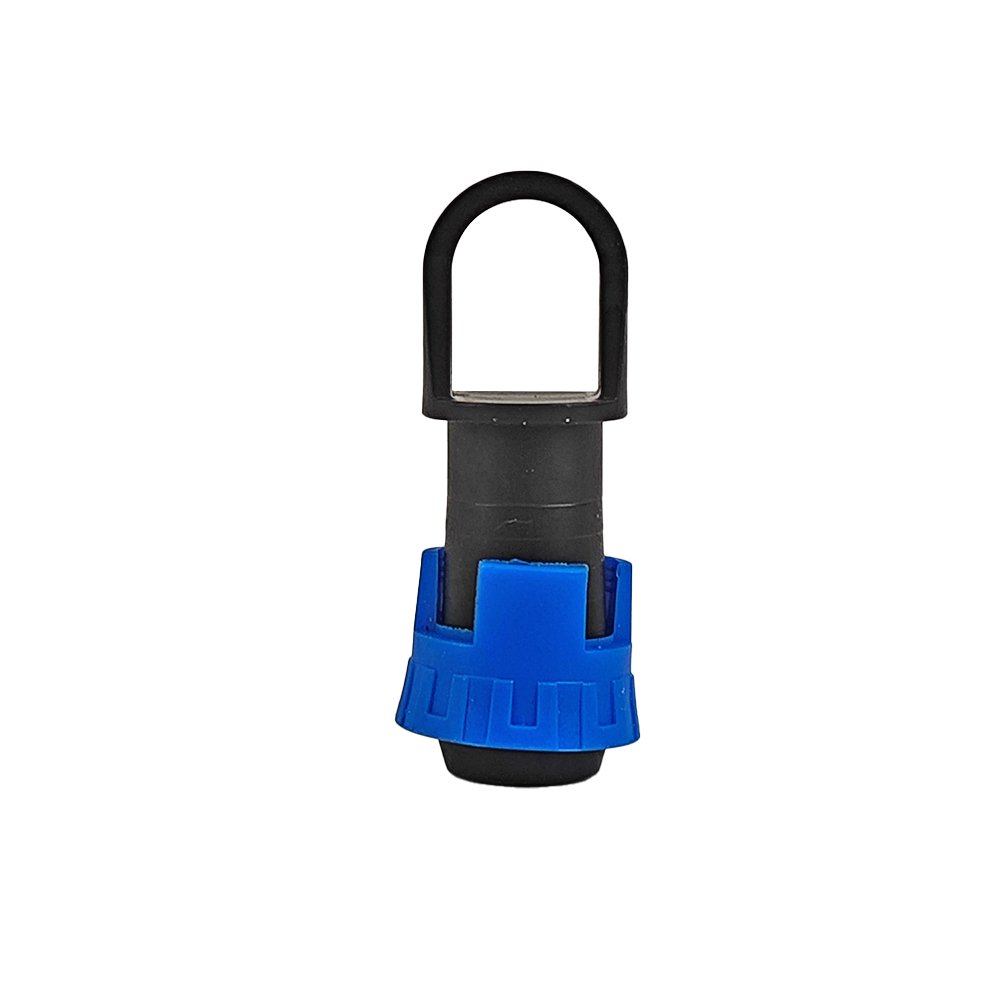

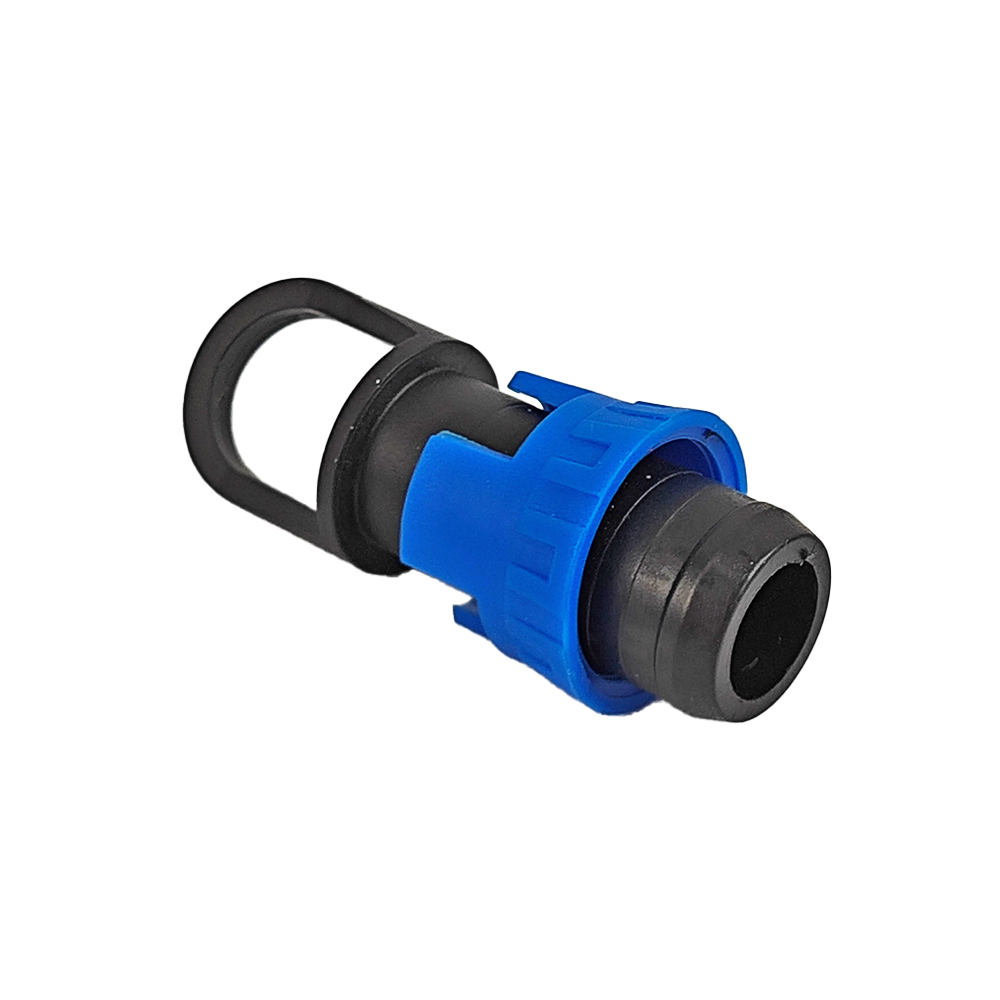

Color	Blue lock section and black body shown
Function	Close the end of a drip tape line; remove for flushing when required
Sealing	Mechanical compression and end seal; test leakage after installation
Working pressure reference	Low-pressure drip irrigation service; use agreed pressure test
Packaging	Bulk PP bag and carton or customized export packing
Customization	Color, logo, label and packing available
Compatibility	Confirm tape wall thickness and end geometry from the approved sample

Applications

End-of-row closure for vegetable beds, greenhouse laterals, nurseries, orchard lines and seasonal drip tape systems.

Manufacturing, Quality Control and Packaging

Each order should be produced against an approved specification covering nominal size, connection geometry, material option, color, sealing parts and packing quantity. Production checks should include molding finish, dimensions, lock or plug retention, handle movement where applicable, sealing fit and leakage under the agreed pressure. HGDN can provide bulk bags, cartons, labels and export packing according to the order.

B2B Custom Supply

HGDN supports agricultural distributors, importers, irrigation contractors and commercial farm projects. Buyers can specify quantity, color, logo, packaging, label, sample matching, compatible tape or pipe, destination market and required delivery schedule. The final material grade, pressure test value and carton configuration are confirmed before production.

Frequently Asked Questions

How do you cap the end of a drip tape line?

Insert the tape end fully into the matched end cap, secure the lock section and run a low-pressure water test. Remove the cap only when the system is depressurized and flushing is required.

Why does this end cap have a pull ring?

The ring provides a grip for removing the closure during flushing, maintenance or seasonal disassembly.

Can the end cap be reused?

It may be reused when the body, lock section and sealing surface are undamaged. Inspect the part and check for leakage after reinstallation.

Does it fit every 16mm drip tape?

Not automatically. Nominal size is 16mm, but wall thickness and connection geometry should be matched to the buyer’s tape sample.

Can HGDN supply custom packing?

Yes. Bulk bags, labeled inner packs and export cartons can be configured for distributors and project orders.
